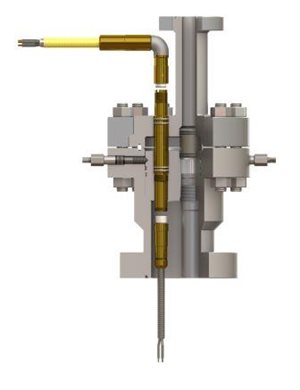

    Metal-Lok™ Wellhead Penetrator

    Rated and tested to 300°F and 5000 psi, Metal-Lok Wellhead Penetrator covers the majority of ESP well applications and is designed and tested to handle harsh environments. The use of PEEK insulation and minimal use of elastomers make it highly resistant...

    Metal-Lok HT Wellhead Penetrator System

    The Metal-Lok™ High Temperature wellhead penetrator system is rated 450°F (232°C) and 3,000 psi and is suitable for some of the most challenging downhole conditions. Like the rest of the Metal-Lok™ family, this product has been subj...

    Metal-Lok Ultra™ Wellhead Penetrator System for SAGD

    The Metal-Lok™ Ultra Wellhead Penetrator with k-PaC™ Technology features a new high temperature feedthru and lower connector design that is suitable for temperatures to 500°F (260°C) and pressures to 3000 psi. This downhole connecto...

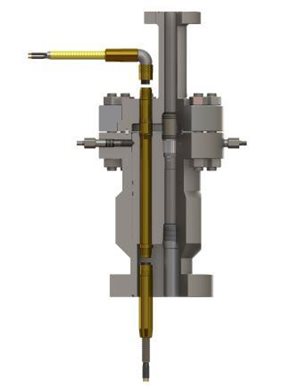

    Captor Penetrator System

    Rated and tested to 300°F and 5000 psi, the Captor Penetrator System covers the majority of ESP well applications and is designed and tested to handle harsh environments. The Captor system has positive keying between the feedthru and the surface co...

    Metal-Lok™ Slimline Wellhead Penetrator System

    The Metal-Lok Slimline is a versatile new product in the BIW line. It is designed to fit into a smaller sealing bore, as small as 2.25”, and is suitable for 300°F / 5000 psi service. The penetrator system comes with BIW’s innovative crimp-fr...

    EFT Wellhead Penetrator System

    The EFT™ Electrical Penetrator System has been safely sealing and passing power through 5,000 psi rated wellheads for more than 20 years. With more than 10,000 installations, the EFT™ Electrical Penetrator System is a proven workhorse in the ESP...

    Rubber Molded 2-Piece Penetrator System

    In some fields, wells with relatively small casing sizes may be outfitted with large production tubing. This can result in clearance problems just below the tubing hanger, with virtually no space available for a lower connector. For these situations, BIW Co...

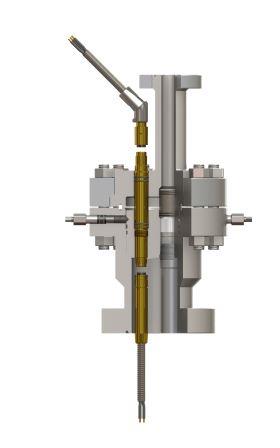

    Rubber Molded 3-Piece Penetrator System

    BIW Connector Systems Rubber Molded 3-Piece Penetrator System is a vulcanized elastomeric system, long recognized for superior performance. This design has been optimized for long life and utmost safety with approvals for hazar...

    Kwik-Lok 2-Piece Penetrator System

    The Kwik-Lok 2-Piece Penetrator System offers a safe, explosion-proof option to cable pack-off type equipment. It features a positive seal design with heavy duty metal shells and standard O-Ring seal technology. This robust design and construction...

    Tri-Lok™ Wellhead Penetrator System

    The Tri-Lok 3-Bore Wellhead Penetrator Systems are designed to provide safe and reliable ESP power transfer through wellheads with minimal space. The design of these systems are ideal for concentric wellheads, with or without bonnets, where there is not eno...

    Uni-Lok™ Wellhead Penetrator System

    The Uni-Lok Wellhead Penetrator system is designed to provide the quickest and easiest pass-through of ESP power at a very competitive price. Unlike other products, the Uni-Lok system offers a complete verified pressure block inside the tubing hanger, ensur...
